| Quantity: | |
|---|---|

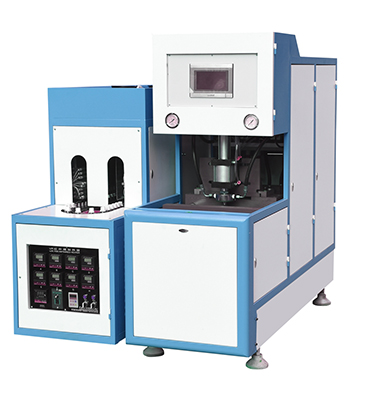

Model | SP-1000B semi automatic blow moulding machine | |
Theoretical output | 800-1000 pcs/h | |
Finished bottle | Max. bottle volume | 2 Liters |
Max. neck diameter | 250 mm | |
Max. bottle diameter | 350mm | |
Max. bottle height | 380mm | |
Mold specifications | Cavity | 28mm-95mm neck size with 2 cavity |
Cavity | 95mm-250mm neck size with 1 cavity | |
Mold thickness | 110mm-400mm | |
Open stroke | 420 mm | |
Electrical system | Power voltage | 380v/3Phase/50HZ |
Installation power | 14kw | |
Actual power consumption | 5-8 kw | |
Air source | Recommend air compressor | 1.2m³/min 30Kg |
Cooling water | Recommend water chiller | 5HP |
Blower size | Length*width*height/weight | 1450*590*1650mm/650kg |
Oven size | Length*width*height/weight | 1680*610*1450mm/350kg |
Model | SP-1000B semi automatic blow moulding machine | |
Theoretical output | 800-1000 pcs/h | |
Finished bottle | Max. bottle volume | 2 Liters |
Max. neck diameter | 250 mm | |
Max. bottle diameter | 350mm | |
Max. bottle height | 380mm | |
Mold specifications | Cavity | 28mm-95mm neck size with 2 cavity |
Cavity | 95mm-250mm neck size with 1 cavity | |
Mold thickness | 110mm-400mm | |
Open stroke | 420 mm | |
Electrical system | Power voltage | 380v/3Phase/50HZ |
Installation power | 14kw | |
Actual power consumption | 5-8 kw | |
Air source | Recommend air compressor | 1.2m³/min 30Kg |
Cooling water | Recommend water chiller | 5HP |
Blower size | Length*width*height/weight | 1450*590*1650mm/650kg |
Oven size | Length*width*height/weight | 1680*610*1450mm/350kg |
