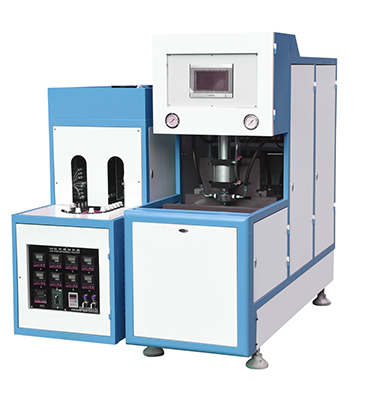

precision polypropylene blow molding machine for bottle

Output

According to bottle type

700-1200PCS/H

Product specification

Bottle diameter

20mm-100mm

Bottle height

50mm-340mm

Bottle mouth diameter

15mm-100mm

Mould

Mold cavity

2cavities

Die thickness

110~220mm

Die opening stroke

160mm

Host power

supply voltage

380v 3Phase /220v 3Phase  50/60HZ

Installed capacity power / actual power used

16kw/7-10kw

Gas source

Highpressureair

compressor

1.2m3/min/ 3.0MPa /15kw

Cold dryer

1.6m3/min/ 3.0MPa /1set

filter

1.6m3/min /3.0MPa /2set

cooling water

Cold water volume

15L/min

Host size

Length, width, height / weight

1600*600*1500mm/600kg

Oven size

Length,width,height/

weight

1750*560*1350mm/250kg
