| Quantity: | |
|---|---|

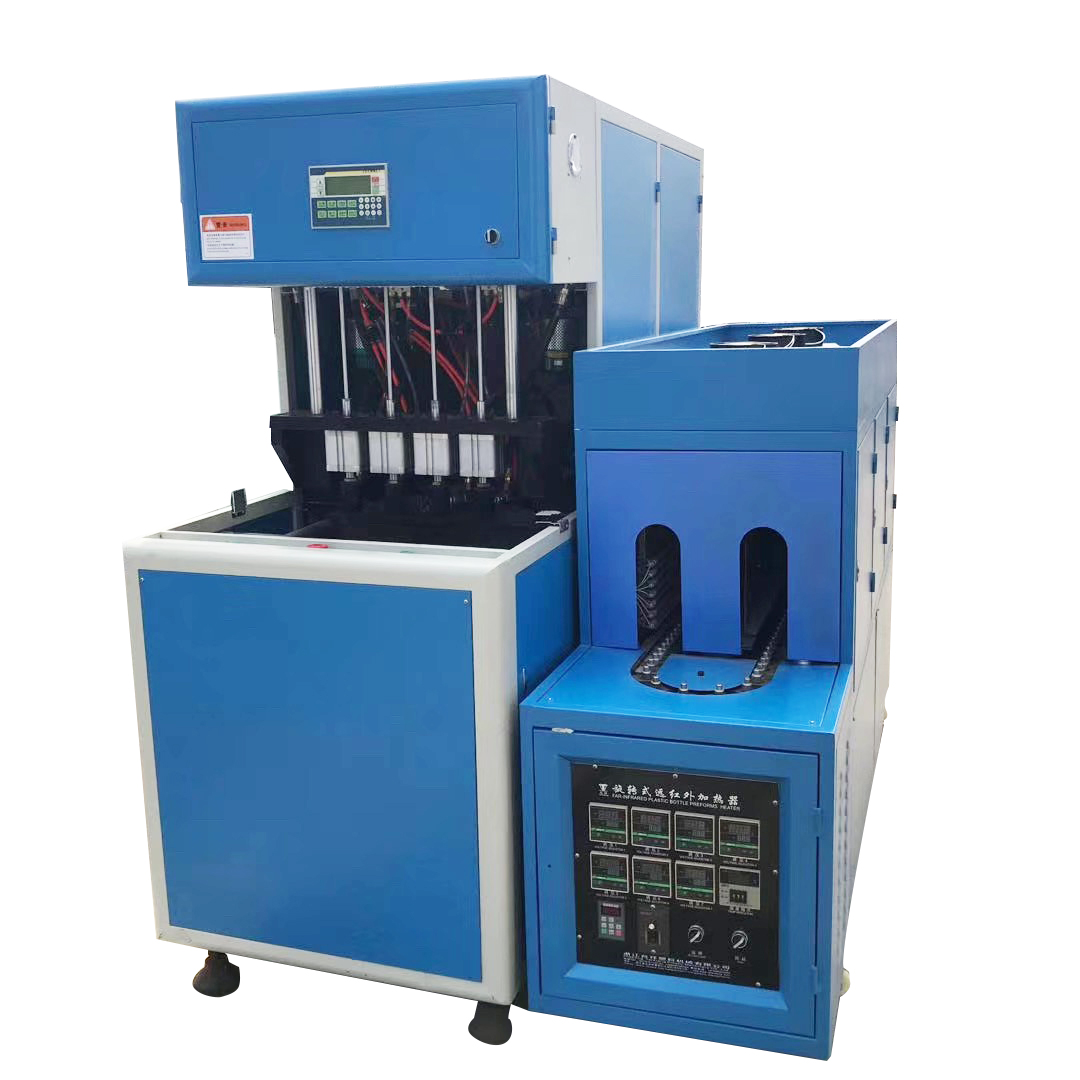

Model | SP-1000A bottle blowing machine semi automatic | |
Theoretical output | 800--1000 pcs/h | |
Finished bottle | Max. bottle volume | 2L |
Max. neck diameter | 80mm | |
Max. bottle diameter | 110mm | |
Max. bottle height | 365mm | |
Mold specifications | Cavity | 2 cavity |
Mold thickness | 110mm-230mm | |
Open stroke | 180mm | |
Electrical system | Power voltage | 380v/3Phase/50HZ |
Installation power | 14kw | |
Actual power consumption | 5kw | |
Air source | Recommend air compressor | 1.2m³/min 30Kg |
Cooling water | Recommend water chiller | 5HP |
Blowing machine size | Length*width*height/weight | 1630*620*1590mm/650kg |
Heater size | Length*width*height/weight | 1780*570*1380mm/350kg |
