Here are some different grade mould for choose:
Name | Combination A | Combination B | Combination C | Combination D |
Core Material | 38Cr | S136 (HRC 44-48) | S136 (HRC 44-48) | S136 (HRC 44-48) |
Cavity Material | 38Cr | S136 (HRC 42-46) | S136 (HRC 42-46) | S136 (HRC 42-46) |
Neck Material | 38Cr | S136 (HRC 48-52) | S136 (HRC 48-52) | S136 (HRC 48-52) |
Mould Base Material | #45 steel | P20 (HRC 28-32) | P20 (HRC 28-32) | P20 (HRC 28-32) |
Mould Structure | Normal | Normal | Self Lock | Self Lock |
Runner | Hot Runner | |||
Preform Tail Type | Short/Long Tail | Short/Long Tail | Short/Long Tail | Valve gate |
Surface Treatment | Polish and Chroming | Polish | Polish | Polish |
Cavity | ≤24 cavity | ≤24 cavity | ≤7 | ≤7 |
Warranty | 0.8 Million Shots | 1 Million Shots | 3 Million Shots | 3 Million Shots |
Combination a price cheapest,suitable for small project and produce preform for own factory. | ||||
Combination B adopt S136 material, prolong the mould life time, and price only increase a little, the most cost-effective. | ||||

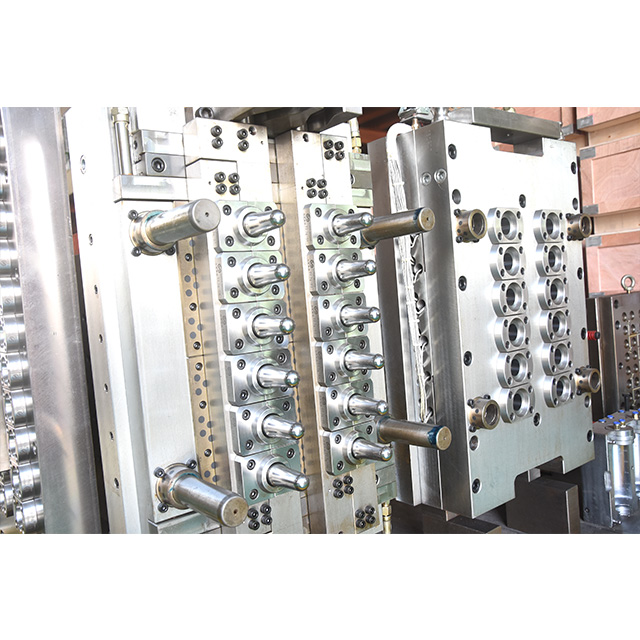

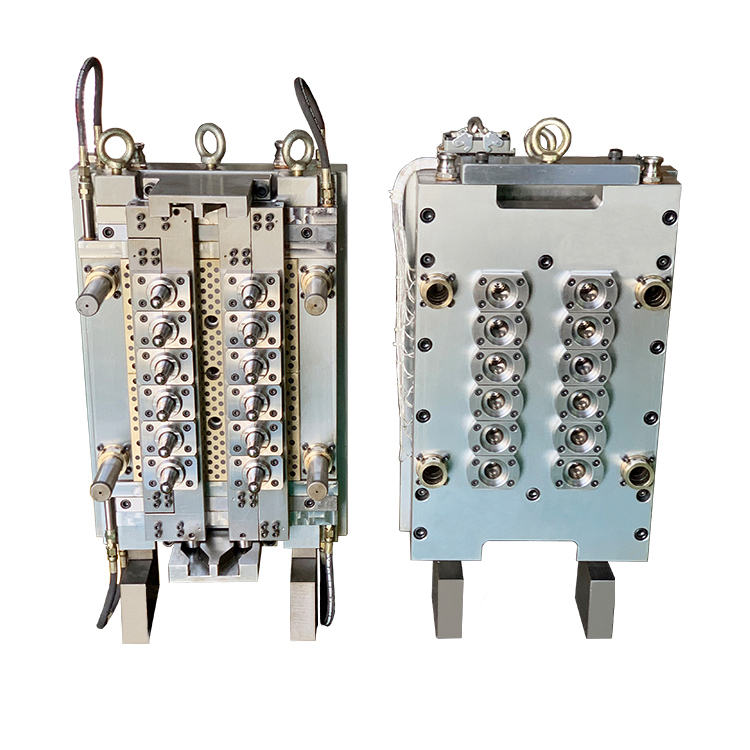

Combination C adopt self lock structure, every cavity is changeable, prolong mould life time and raise product quality. | ||||
Combination D is best quality,suitable for professional preform supplier. | ||||
Our Service
Free Layout Plant Design
Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you
Free Spare Parts
All Reliable Machine will be supply One year spare parts for Free . High Quality Parts ensure the stable of machine's running .
Engineer Available Installation Service
Our engineer can go to your factory to install the machine, give you the operating manual and train your employee until they can operate the machine well.
How can I place an order?
You send us inquiry, then we will send you quotation with the product’s picture, specification, price, lead time, payment term etc;
After quotation been accepted, we send you the proforma invoice;
You arrange deposit and send us Bank receipt;
Initial production stage- Inform you we have gotten the payment, we will make the 2D&3D product drawing according to your request, send you the .stp or .igs file to get your approval.
Once you confirm the product drawing, we can arrange to make the mould drawing based on your requirement.
Middle production stage- We start to make the plastic PET preform mould based on confirmed drawings and confirm the estimated delivery time.
Ending production stage- the mould is finish and the T1 PET preform samples and video are come out then send to you. After the samples are confirmed by your-side, you can arrange your inspector or engineer to come to test the mould in our factory again.
You arrange balance and we ship the goods. We can also accept payment term-balance against B/L Copy or L/C payment term etc.
Order can be finished when you receive the goods and satisfy with them.
Feedback to us about quality, service, mould running feedback & suggestion. We will do better.
