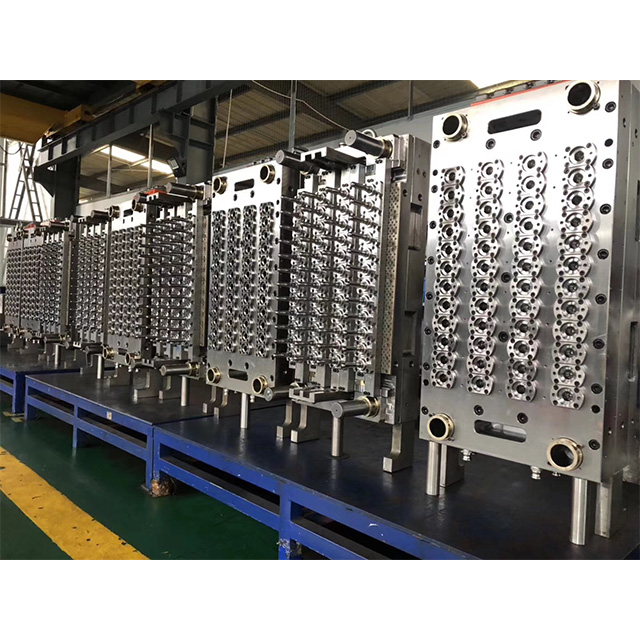

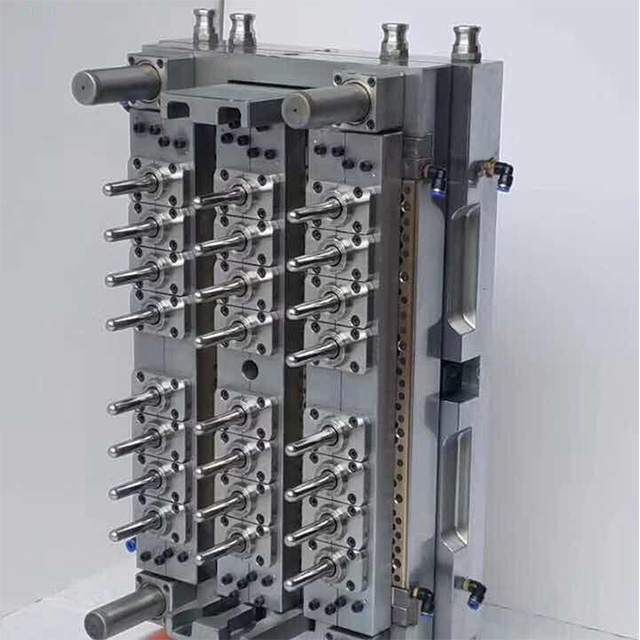

Features Of PCO 1810 PET Perform Mould:
1. Mould plates are P20 steel with pre-hardening process. Core, cavity and neck screw are made of S136 high strength anti-corrosive stainless steel, which is better than 48HRC.
2. Mould plate is completed by one-time processing to ensure the concentricity of molding hole and guide bush, guaranteeing the compact structure of the mould.
3. Opening/closing pulling plate(material S136) adopts bearing slide type to drop the perform with reliable structure. And it is a highly integrated process of slider, pushing plate and ejection. All sliding parts surface inlaid self-lubricating copper alloys to ensure low friction coefficient and strong wear-resistant.
4. The main components are consistent with various well-known foreign brands, high positioning accuracy and convenient disassemble.
5. Reasonable and quick spiral cycle waterway can get rapid cooling effect to shorten cycle time.
6. Adopting double cone positioning principle guarantees high manufacturing precision to ensure the product does not appear flash, different sizes, irregular and other defects.
7. Neck screw is processed by famous brand equipment. The dimension is accurate and consistent.
8. Moulding part hardening makes the friction surface stable, identical and durable in use.
Cooling System:

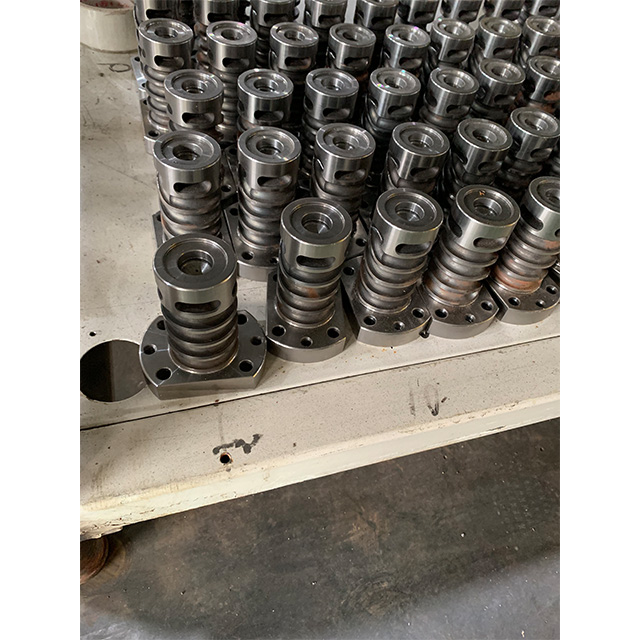

Spiral Water Cooling Way on cavity
Enhances mould cooling.
Cooling System on neck and move neck plates brings an enhance cooling.
Precise Distributed Plate distributes cooling water into cavity evenly, quicken preform cooling.
Q1: What kind of molds do you make? Plastic injection mold, Die casting mold or something else?
A1: We are mainly making plastic mold injection and Die casting mold.
Sometimes we also make stamping molds according to our customer’s requirements.
Q2: What types of files do you accept (drawings)?
A2: With our CAD systems we can accept following files:
STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.
Q3: What kind of steel do you use for plastic mouldings?
A3: We can use any type of steel appointed by customer or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q4: Can you provide the steel certificate and heat-treatment certificate?
A4: Yes, We can provide steel certificate or hardness certificate to prove.
Q5: Can you make the texture / text / heat_treatment /nitriding for the injection mold plastic?
A5: Yes, As plastic mold factory, we have long_term cooperated subsidiary factories that do those processes.They are professional and well reputed in our local market.
