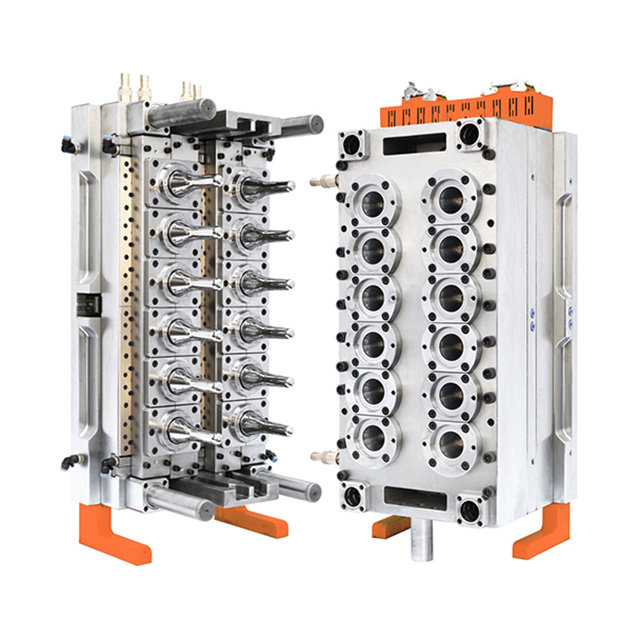

12 Cavity PET Preform Injection Moulding

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

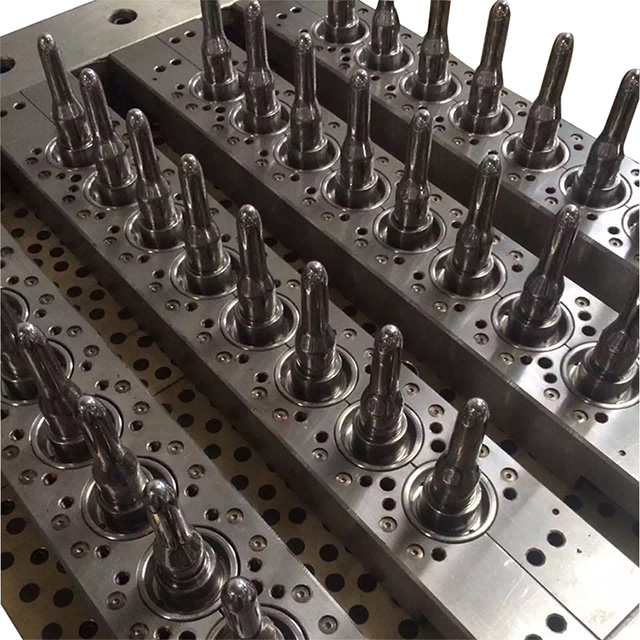

12 cavity PET preform injection moulding is an injection mould, which is suitable for producing PET preforms. There are many preforms with different neck and weight for different  bottles, such as  the carbonated bottle, mineral water bottle, , pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot fill bottle etc.

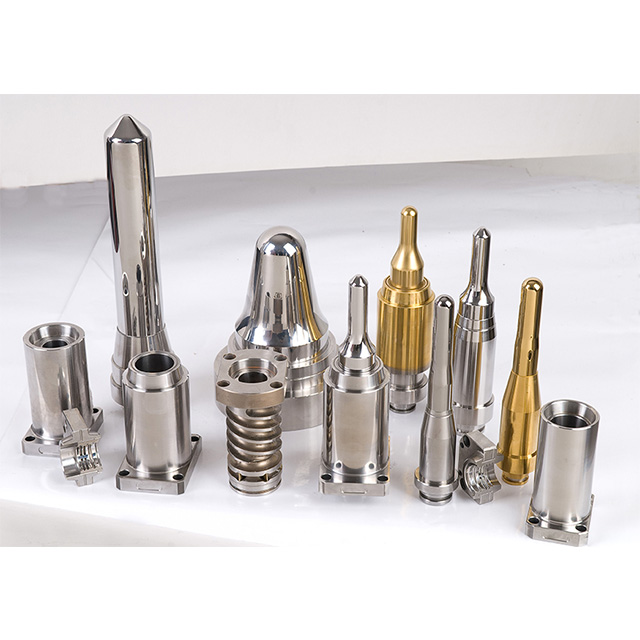

Core, cavity and neck material

S136 steel (48-50HRC)

Mold base material

Chrome plated P20 (anti-rust)

Nozzle Material

Beryllium Copper; SKD61

Wear Plate

Graphite copper plate

Runner type

Hot runner pin valve gate

Cycle time

18 to 23 s



Mold life

5 million shots

Mould Feature

1) Easy in maintaining: self- lock and shut-off individually for each cavity.

2) Adopting advanced components in hot runner and main mould parts.

3) Good cooling to control the  mould cycle time and ensure high efficiency when producing preforms.

4) Running in a high automatization and preform drops from mould automatically.

5) High precision of preform thickness difference < 0.05mm.

6) Preform thickness and height is reasonably and perfectly designed to ensure the final bottles weigh light but feel hard.

Independent R&D team has obtained several National Patents on mold design.

High quality steel material & new inserts material reduce cycle time 25-35%.

Advanced CNC machines and techniques ensure the high precise preform wall thickness & weight.

Valve-gate Hot-runner System for tailless preform production.

Central Orientation Adjusting System minimizes Preform Eccentricity.

Standard Inserts are changeable.

Removable cooling pipes in cores could be easily cleaned.

Fit for any brand Injection Machine.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?
A: Generally it is 20-60 days for mould. Mess production delivery time depends on the quantity.

Q: Can you put my LOGO on your products?
A: Yes, we can put customer's LOGO on products via engraving or print or label.

Q: Can I change the design a little bit?
A: Yes, we can also make the whole design for customer

Valve Gate PET Preform Mould_xq(1)

packing list
