Water Bottle Preform Mold

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

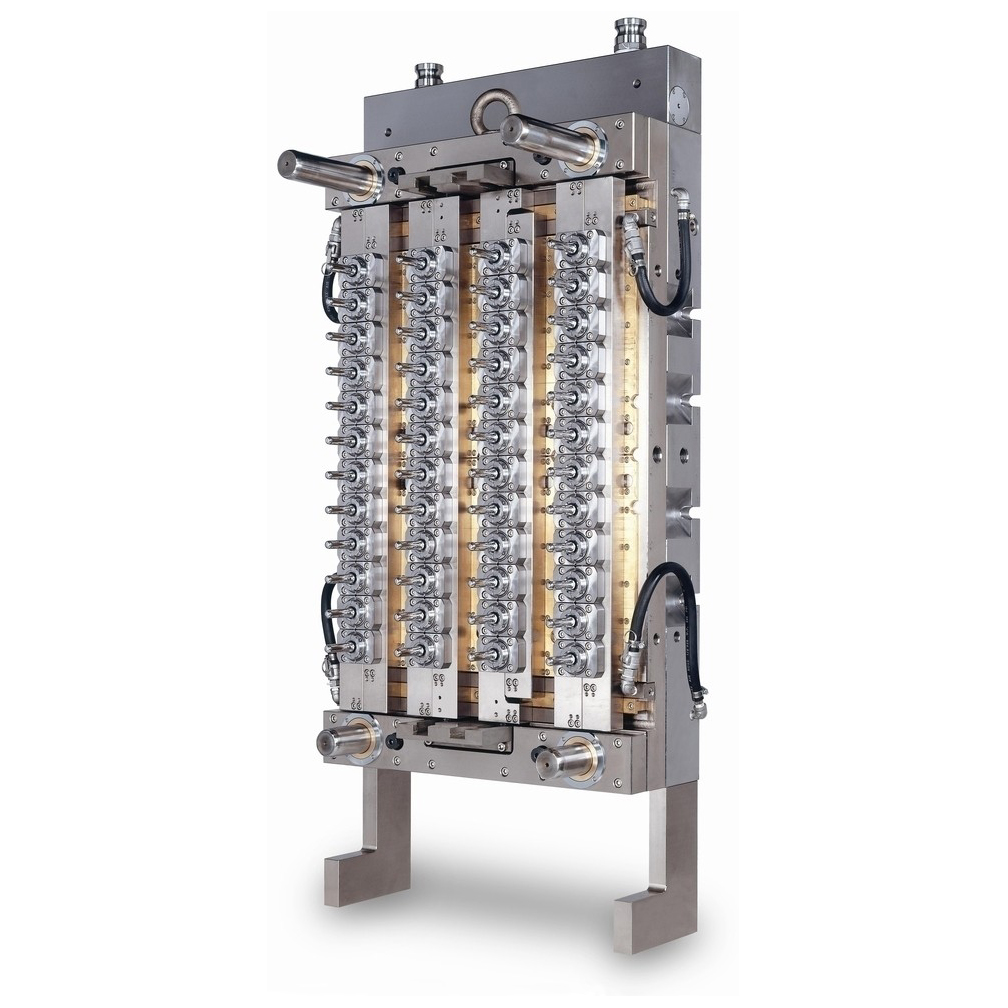

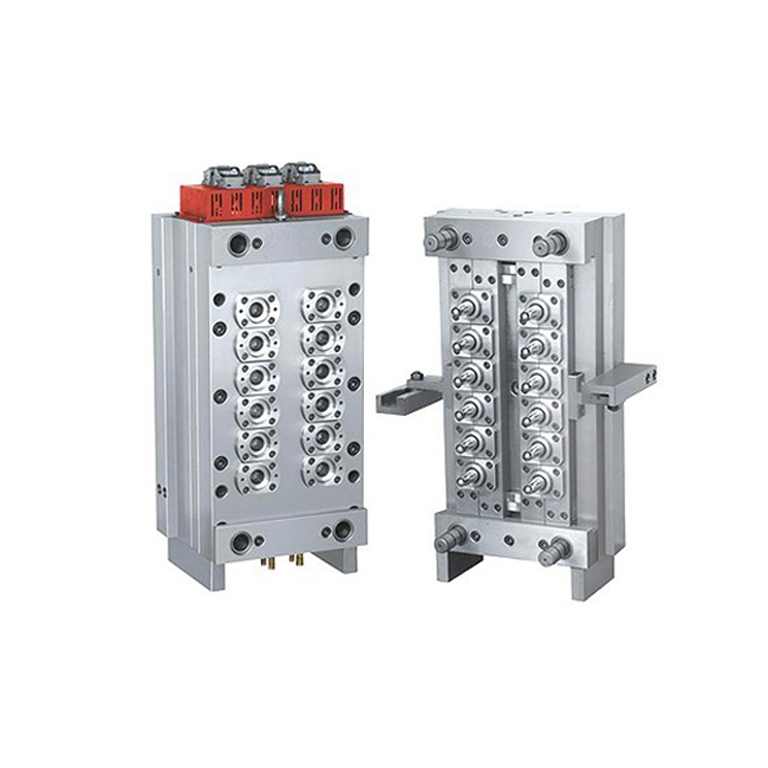

water bottle preform mold with valve system and self lock


We support customer R&D. Make the files or improve the design if you needed.

2.Quotation Making

Mould Quotation will be finished in 1 day according to information based on samples, drawing and specific requirement we get.


The quality, price, material, delivery time, payment item, etc.

4.Mould Design

1-2days for product 3D/2D drawing design as per customer's design or our company's design. Then in further make the mould 2D/3D design.


1. Confirm the products and the mold design

2. Mould material prepare

3. Rough machining(heat treatment on mold base and pre-harden on mold)

4. CNC/ Vacuum Hardening on mold main spare parts

5. finishing machining( JDPAINT, DEM.etc)

6. Dimension inspection

7. Ejector& runner& cooling & other device process

8. Assemble mold

9. We send processing photos to customer each week.

6.Mould Testing

When moulds are finished, we will test the mould and we will send samples for consumer reference.

7. Sample Confirmation

If the first sample is not satisfied by customer when it is come out. We modify the mould until meet customer’s satisfaction.


Delivery goods by sea or by air, according to customer’s requirement.

Hot runner features:

1. Hot runner adopts a balanced three-point multilayer filler structure to ensure that each cavity injection stroke is consistent.

2. Special shape is designed to minimize the heat expansion coefficient, to ensure positional accuracy of the injection points.

3. Hot runner use embedded square heating pipe which is arranged around the channel shape with good heat transfer performance to keep the temperature of each injection point same.

4. Main parts adopt international famous brand.

5. Each nozzle is individually controlled by voltage. Lower the possibility of AA level.

1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: Can you provide the installation service?

A: We will assemble and test the machine before packing, we provide installation guide. If customer need, we will send one engineer for assembling and training for workers.

Q. How do i pay for the order?

 A.The common payments are T/T(Telegraphic Transfer),western union,

Valve Gate PET Preform Mould_xq(1)

packing list
